Model NO. : PCS
HS Code : 8474390000
Supply Ability : 60sets/year
Model : PCS30, PCS46, PCS55, PCS70, PCS100
Application : Powder Coating
Transport Package : Fumigation Wooden Box
Specification : CE, ISO9001: 2008, SGS
Trademark : DEGOLD
Origin : Chongqing, China
Customization : Available | Customized Request
Model Parameter | PCS30 | PCS46 | PCS55 | PCS70 | PCS100 |
Screw Diameter(mm) | 30 | 46 | 55 | 70 | 100 |
Screw length/diameter ratio | 7:1 or 11:1 | 8:1 or 11:1 | 8:1or 11:1 | 8:1 or 11:1 | 8:1 or 11:1 |
Max screw rotation r/min | 300/500 | 300/500 | 500 | 600 | 500 |
Main motor power(KW) | 4 or 5.5 | 11 or 22 | 30 | 45 | 90 |
Heating ability(KW) | 4 | 2x12 | 2x12 | 2x12 | 2x12 |
Output(depending on formulation) kg/h | For lab use | 50-100 | 50-300 | 100-600 | 300-1200 |
![]() |

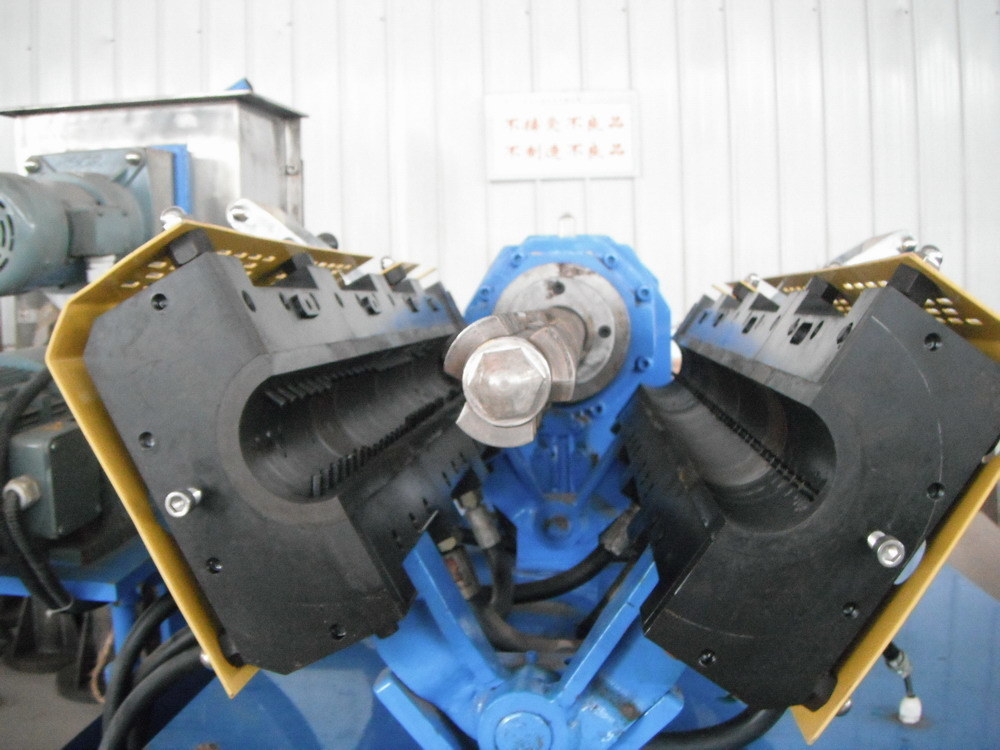

100mm Dia Single Screw Extruder Kneader Machine For Powder Coating Production Images |
